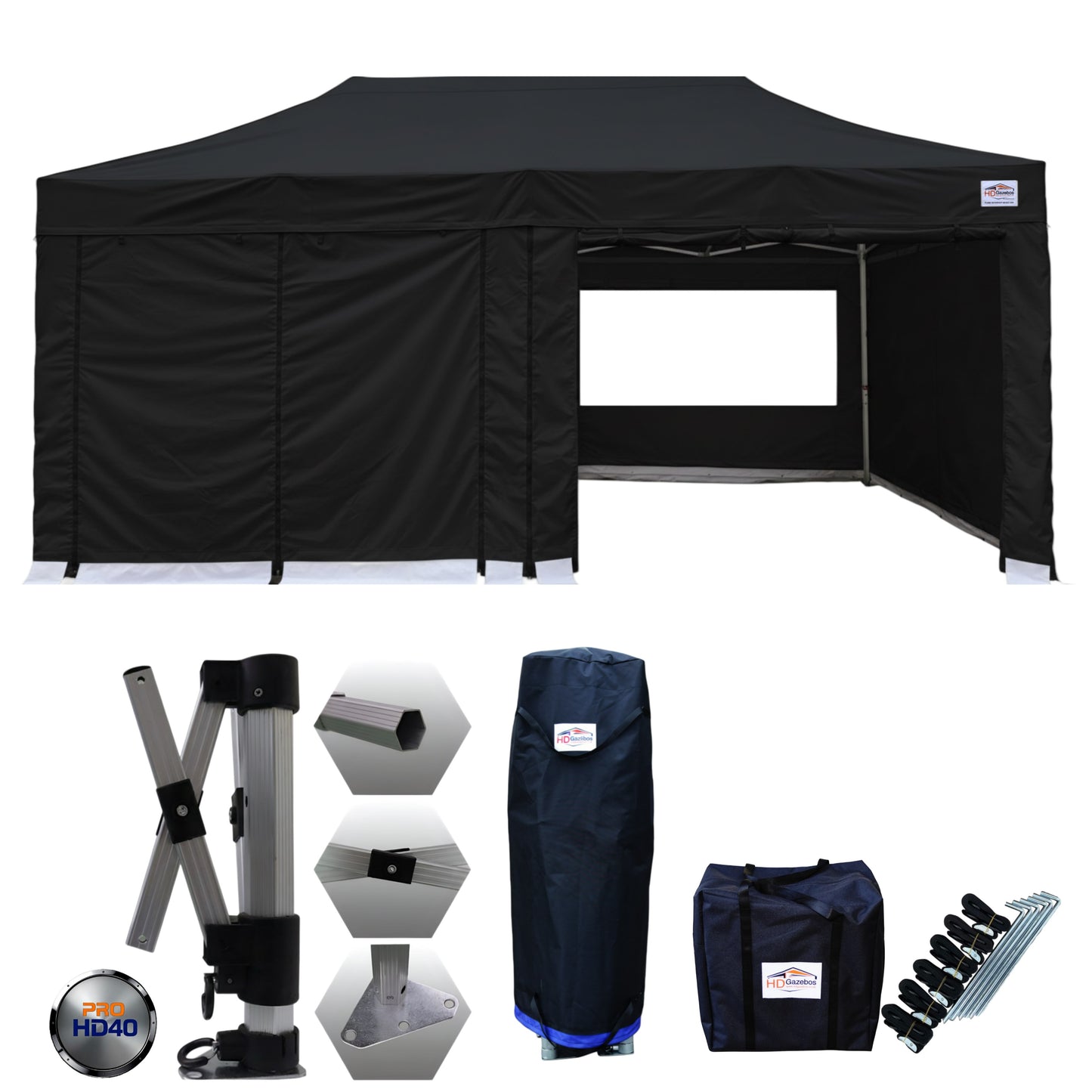

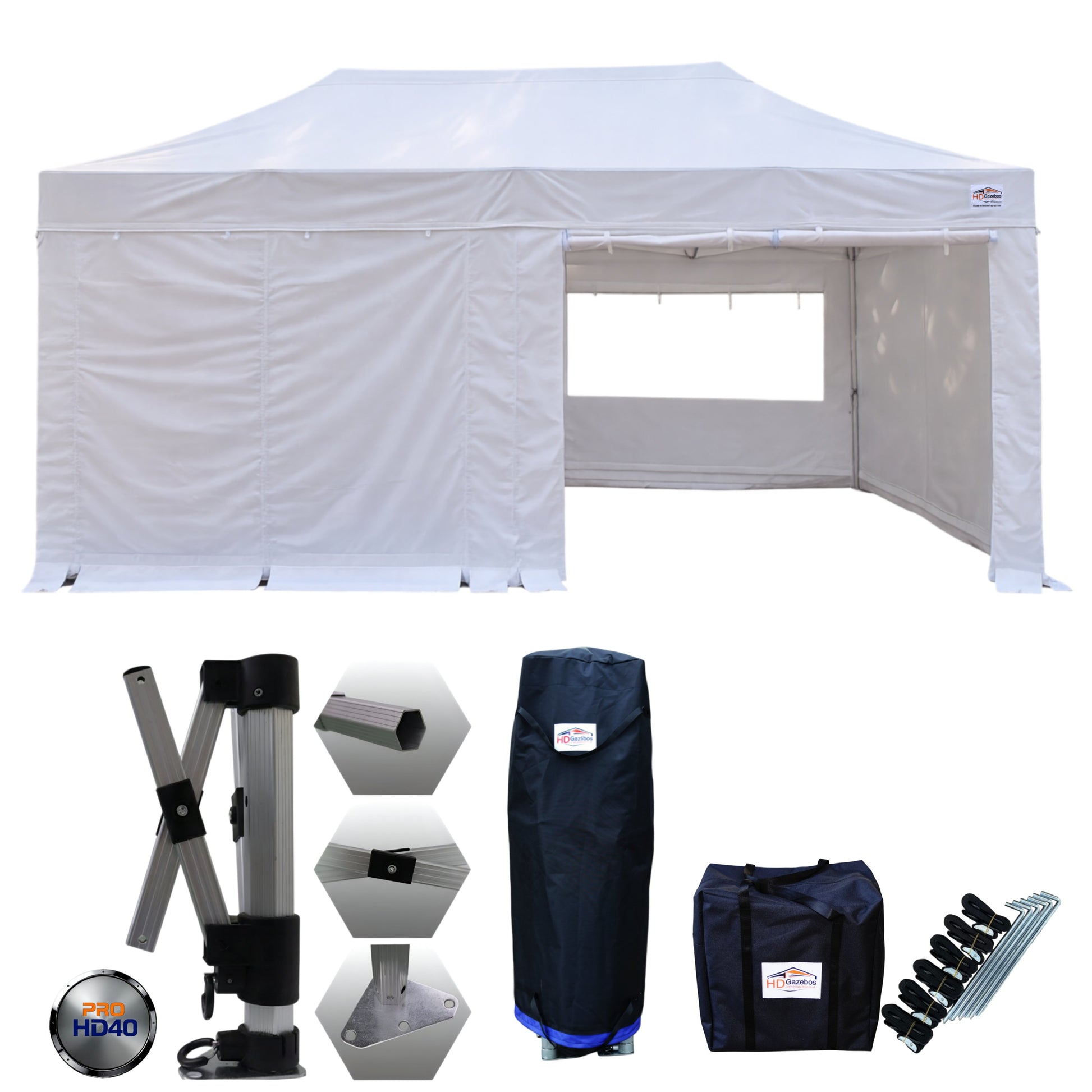

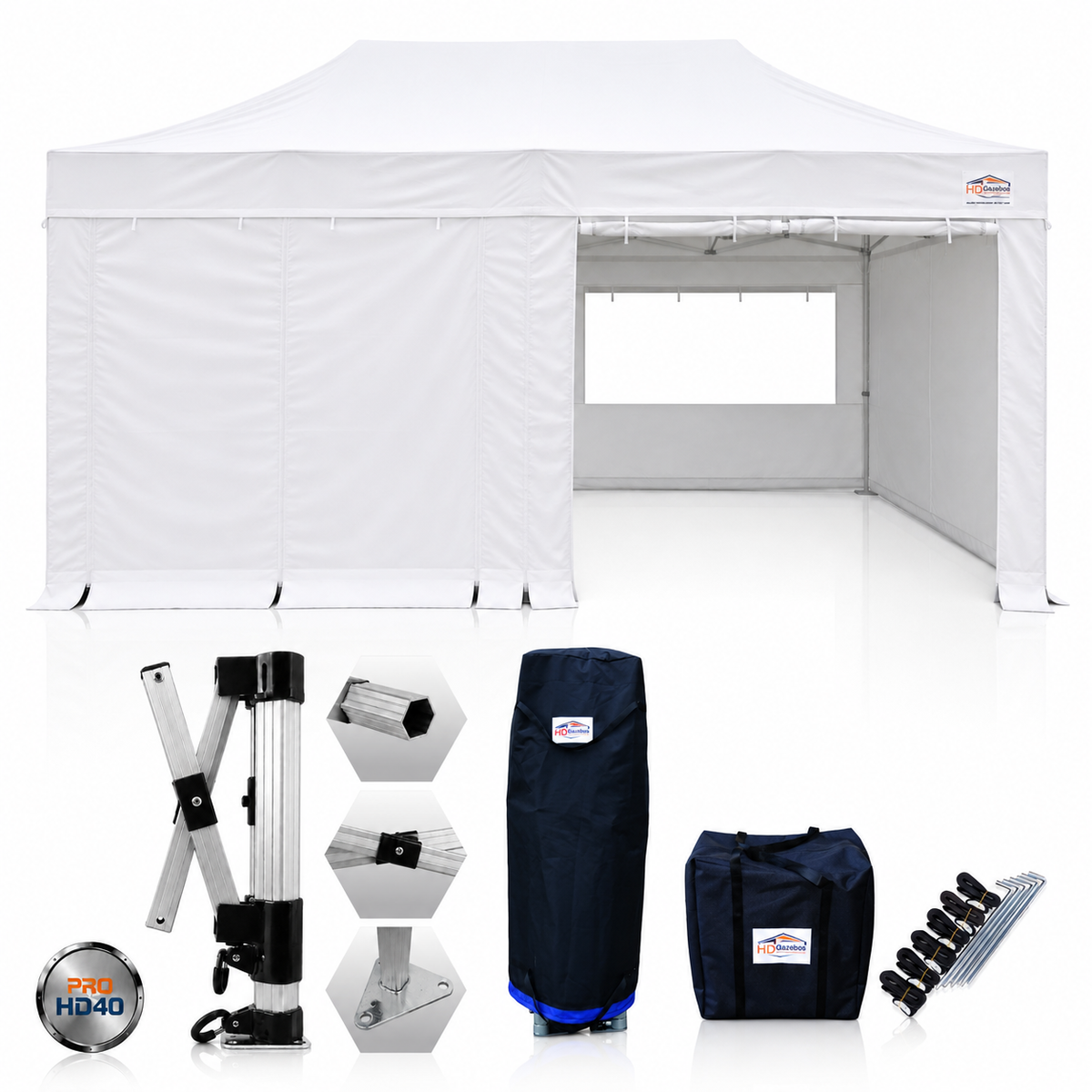

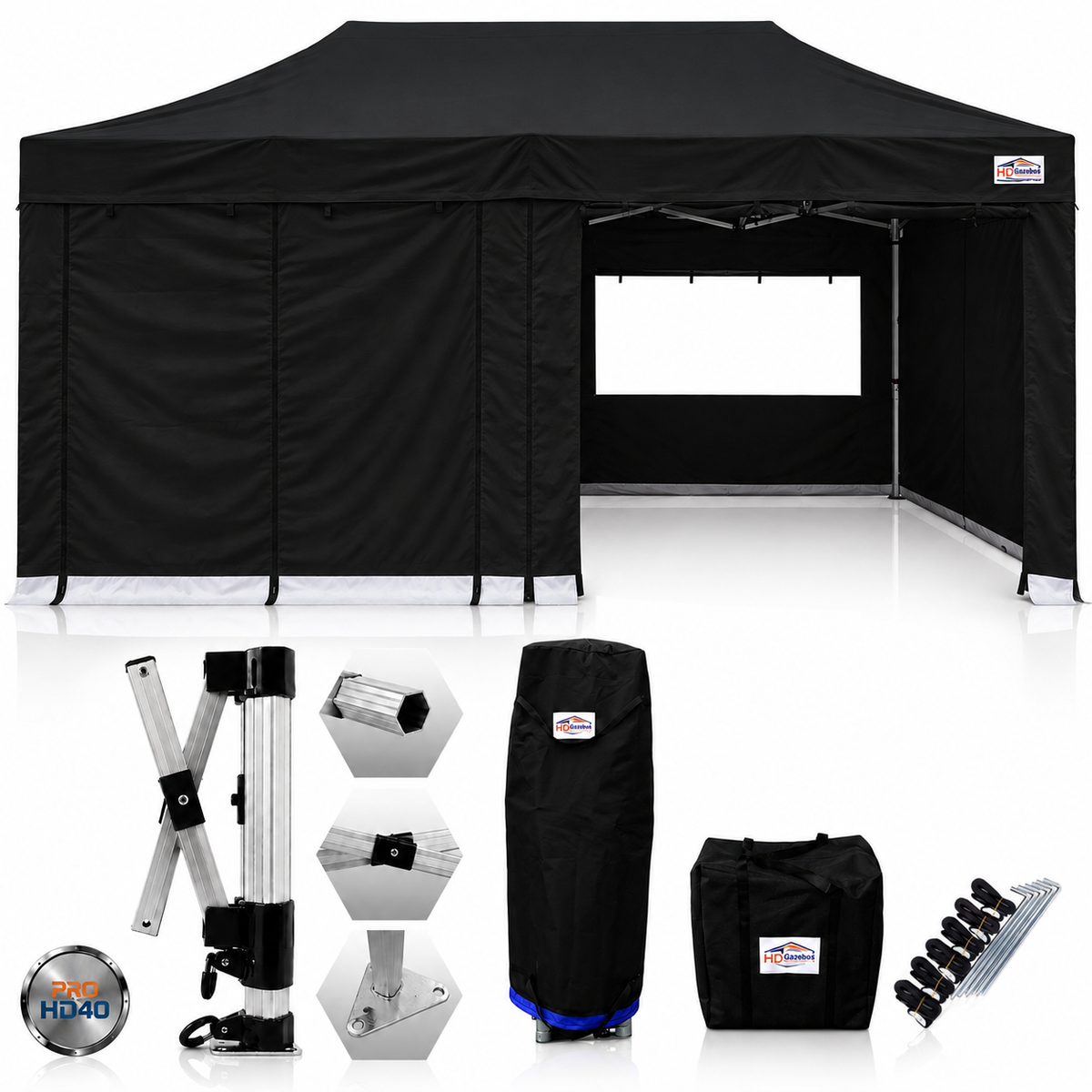

3x6 Heavy Duty Pop Up Gazebo with Sides PRO HD40

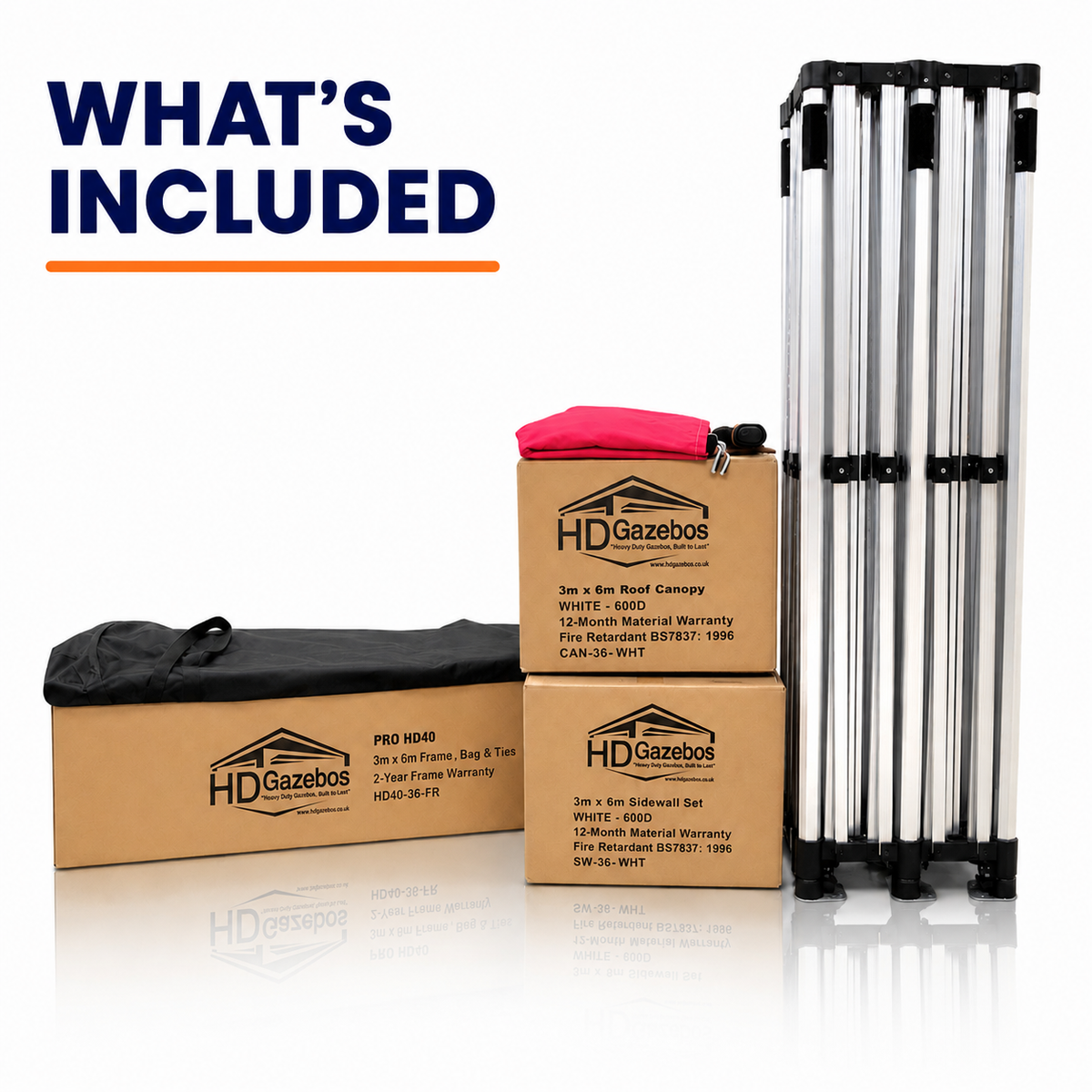

Included With Your Purchase:

Frame Package

• 3m x 6m PRO HD40 Heavy Duty Frame

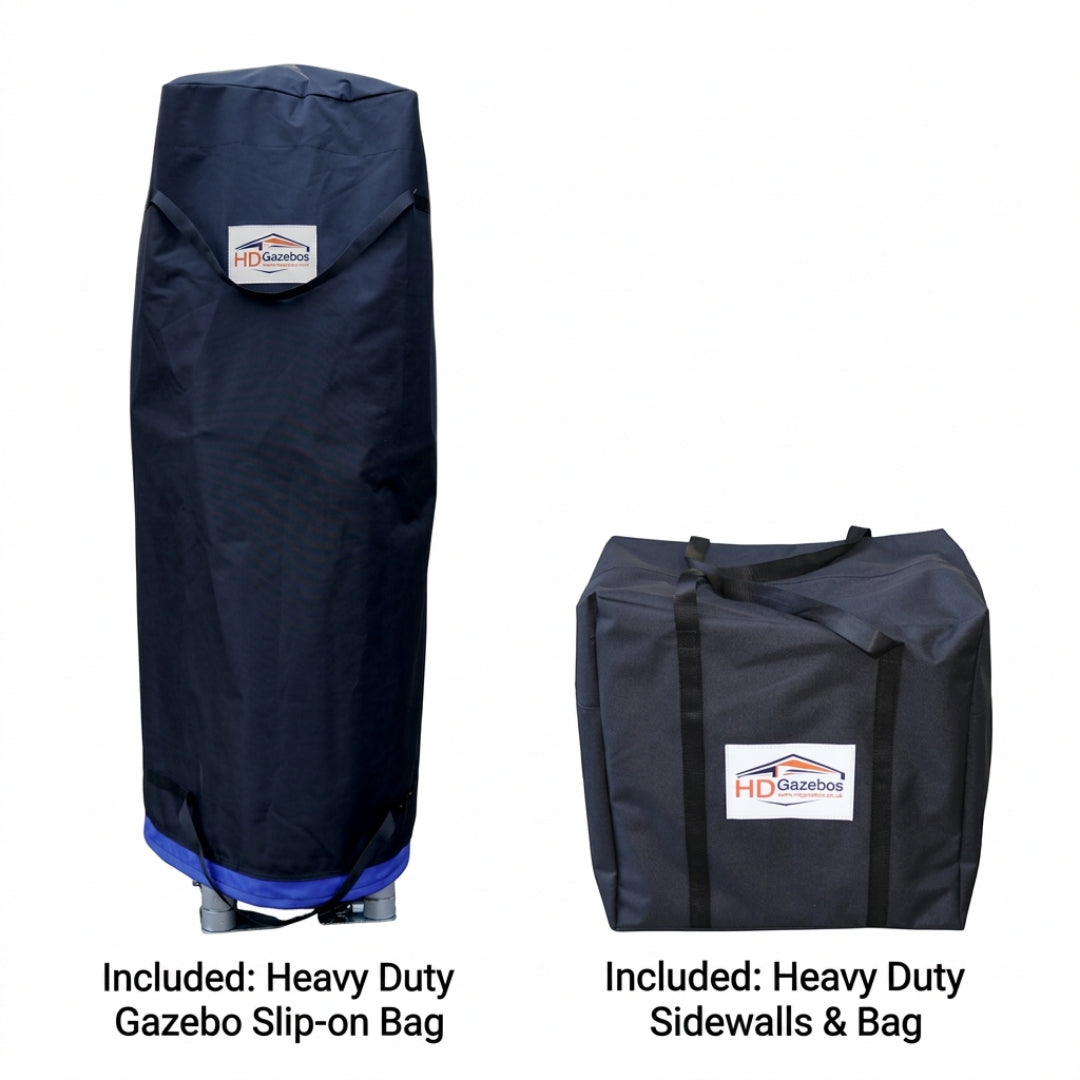

• Slip-On Storage Bag
• Heavy Duty Stakes & Tie-Down Straps

Roof Canopy

• 3m x 6m Fully Waterproof 600D Roof Canopy in your selected colour.

Sidewall Set

• 2x - 3m Plain Panels
• 2x - 3m Door Panels
• 2x - 3m Window Panels

Heavy Duty 40mm Hex Aluminium Frame

Constructed using a reinforced 40mm hexagonal aluminium frame, providing an excellent balance of strength, durability and portability for regular professional and commercial use.

Fully Waterproof 600D Roof Canopy

Manufactured from high-quality polyester PVC-coated 600D fabric, offering reliable protection from rain, wind and changing weather conditions.

Dual-Fix Roof Attachment System

Unlike many standard gazebos that rely on a single fixing method, the roof canopy features multiple fastening points along each side for enhanced security and stability.

These include:

• Heavy-duty clip connectors
• 2x reinforced 5cm Velcro securing straps
• Dual roof connection points for enhanced retention

Together, these fastening methods help maintain canopy tension and provide additional backup support should one fixing method become worn or less effective over time.

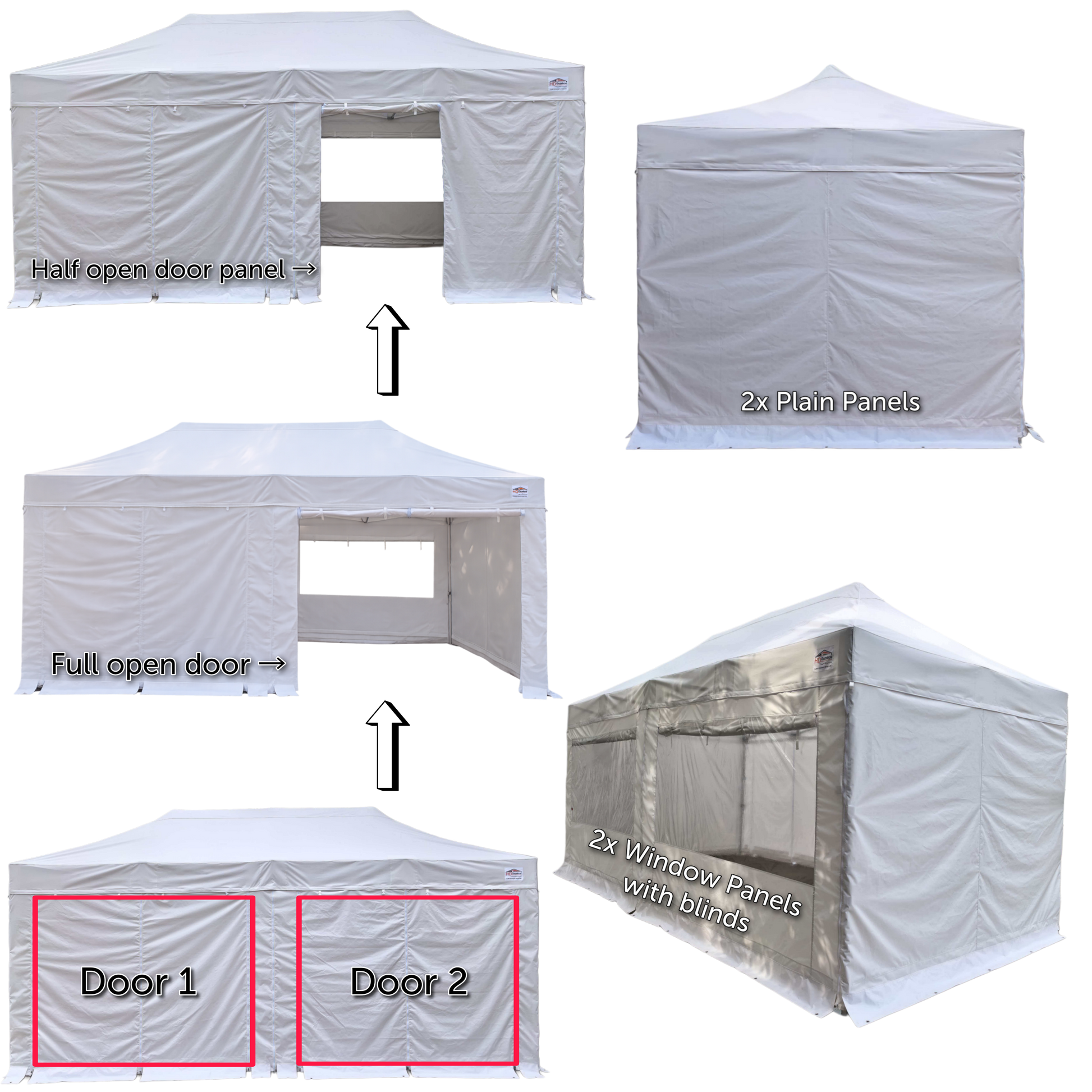

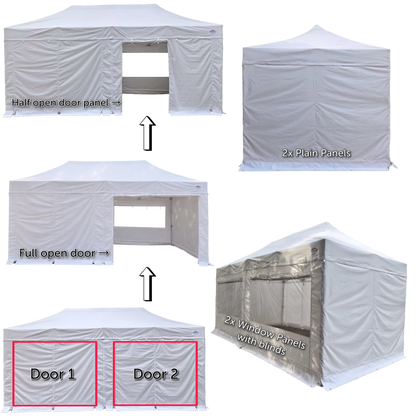

Complete 600D Sidewall Enclosure System

Manufactured from the same high-quality 600D PVC-Coated Polyester as the roof canopy, the sidewall system provides reliable protection from wind, rain and changing weather conditions.

Supplied with a complete enclosure consisting of plain panels, door panels and window panels, allowing complete flexibility for different applications and weather conditions.

Flexible Door Panels

The door panels can be used fully closed, half open or fully open, providing convenient access, improved ventilation and greater versatility.

Window Panels

Features roll-up window blinds with buckle fastenings, allowing visibility when required or additional privacy and weather protection when closed.

Ground Bar Compatible

Integrated ground bar sleeves are built into every sidewall panel, allowing optional ground bars to be fitted for increased stability and improved sidewall tension.

Internal & External Anchoring Points

Sidewall panels feature internal eyelets together with external PVC skirt eyelets, helping secure the enclosure and improve overall stability.

Professional-Grade Construction

Designed for market traders, event professionals, caterers, exhibition stands, commercial operators and anyone requiring a premium heavy-duty gazebo solution.

PRO HD40 SPECS

Outer Leg: 40mm × 1.5mm Hex Aluminium

Inner Leg: 35mm × 1.5mm Hex Aluminium

Truss Bar: 26mm × 13mm × 1.3mm Aluminium

Upper Central Pole: 25mm × 25mm × 1.5mm Powder-Coated Steel

Lower Central Pole: 30mm × 30mm × 1.5mm Powder-Coated Steel

Foot Plate: 110mm × 110mm × 2.5mm Galvanised Steel

Adjustable Height Settings

• 1.8m Clearance
• 1.875m Clearance
• 1.95m Clearance
• 2.025m Clearance
• 2.1m Clearance

Package 1 – Frame Package

Frame, Slip-On Bag, Stakes & Tie-Downs

Dimensions:

H 156cm × W 47cm × D 28.5cm

Weight:

40kg

Package 2 – Roof Canopy

3m x 6m Waterproof Roof Canopy

Dimensions:

55cm × 37cm × 15cm

Weight:

14kg

Package 3 – Sidewall Set

2x - 3m Plain Panels • 2x - 3m Door Panels • 2x - 3m Window Panels

Dimensions:

45cm × 45cm × 30cm

Weight:

26kg

Total Delivered Weight

80kg (3 Packages)
